RVM-14 UltraLight MNVD
RVM-14 UltraLight MNVD
Couldn't load pickup availability
These monoculars are in stock, ready to ship.
These builds utilise our NNVT Fallout tubes, which are delivered directly from NNVT. They are not used, other than being tested to discern what their defect is. As these tubes are rejected by the factory, they do not come with spec sheets. However, as they are NNVT-7 IIT, you can expect a minimum of 2000+ FoM.

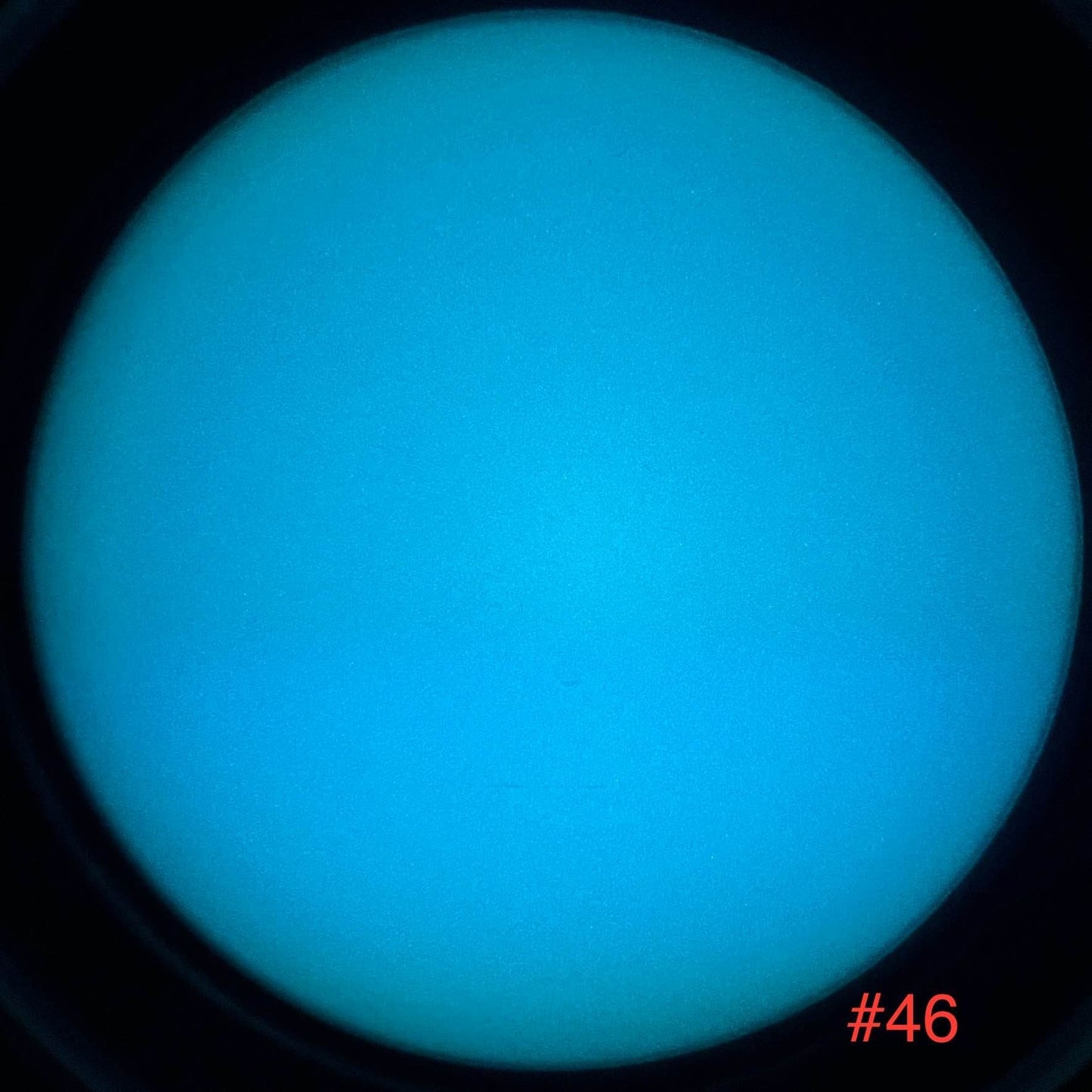

IIT #46 Has a slight line in Zone 2, rendering it as a defective image intensifier.

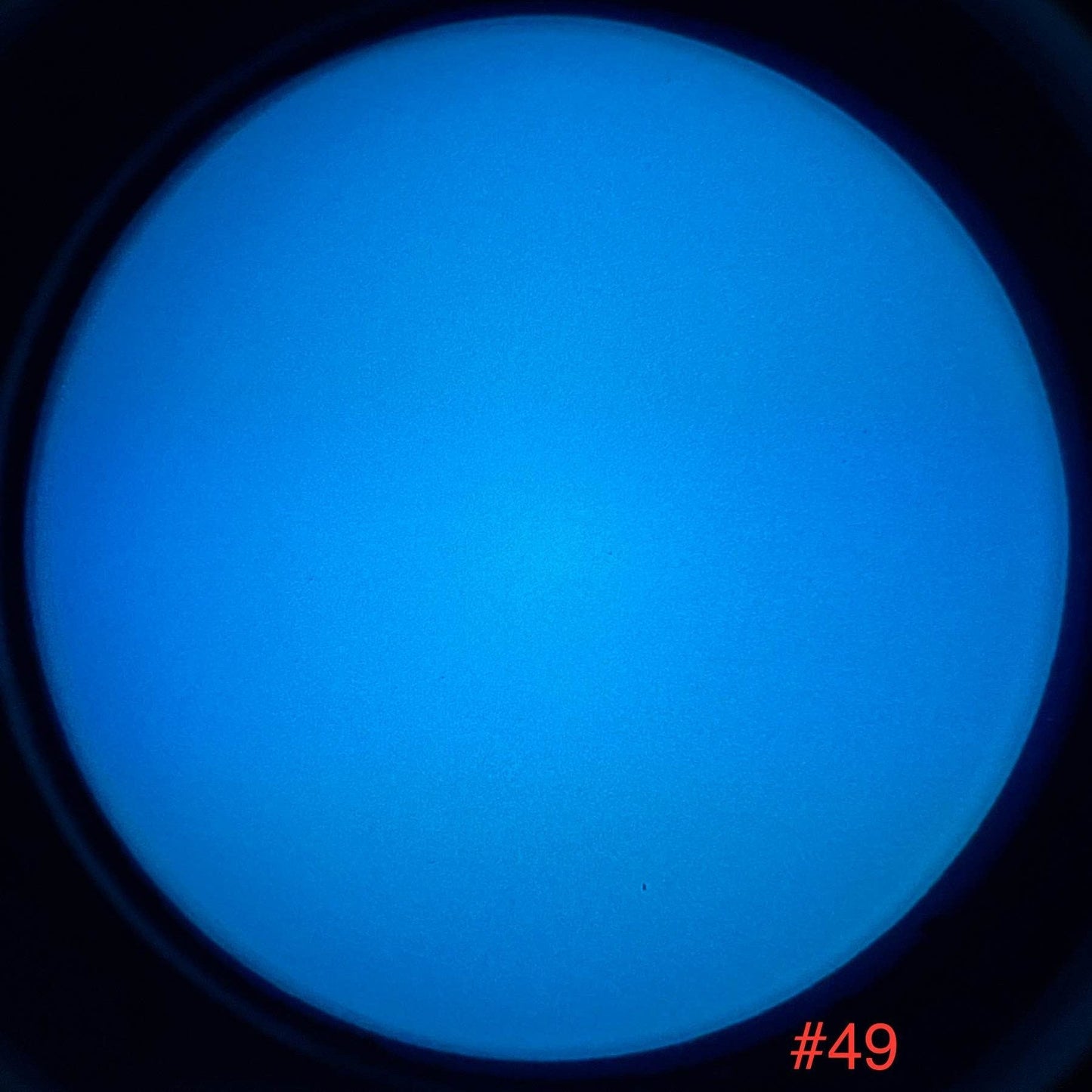

IIT #49 Has two faint spots in Zone 2, rendering it as a defective image intensifier.
The RVM-14 monocular housing is billet machined from 7075 aircraft grade aluminum and designed to handle challenging real-world environments. The housing design accepts standard mil-spec PVS-14 lenses, or lightweight RPO lenses.
The monocular features a side mounting area to accept PVS-14 accessories and mounts with a standard ¼-20 thread. Two monos can also be attached to a bridge mount (RVM-14 Bridge, Coming Soon) in a binocular configuration with the small dovetail incorporated into the top of the housing, or the dovetail can be used with the RVM-14 Arm for single mono use. Both the Arm and Bridge are articulating to lay back against the helmet when in the stowed position.
The monocular design features a rotary switch that doubles as gain adjustment. The switch initially turns the tube on at full brightness, then dims the MX-11769 image intensifier tube as the knob is rotated further. The unit includes an onboard infrared illuminator activated by a push button switch on the front of the unit. The button is
surrounded by a protective fence to prevent accidental activation. Indicators on the edge of the viewing area show if the IR LED is actively on, or if the unit detects a low battery.
The RVM-14 weighs 15% less than a typical single AA PVS-14 with a 50% longer battery life and has a much tougher housing.

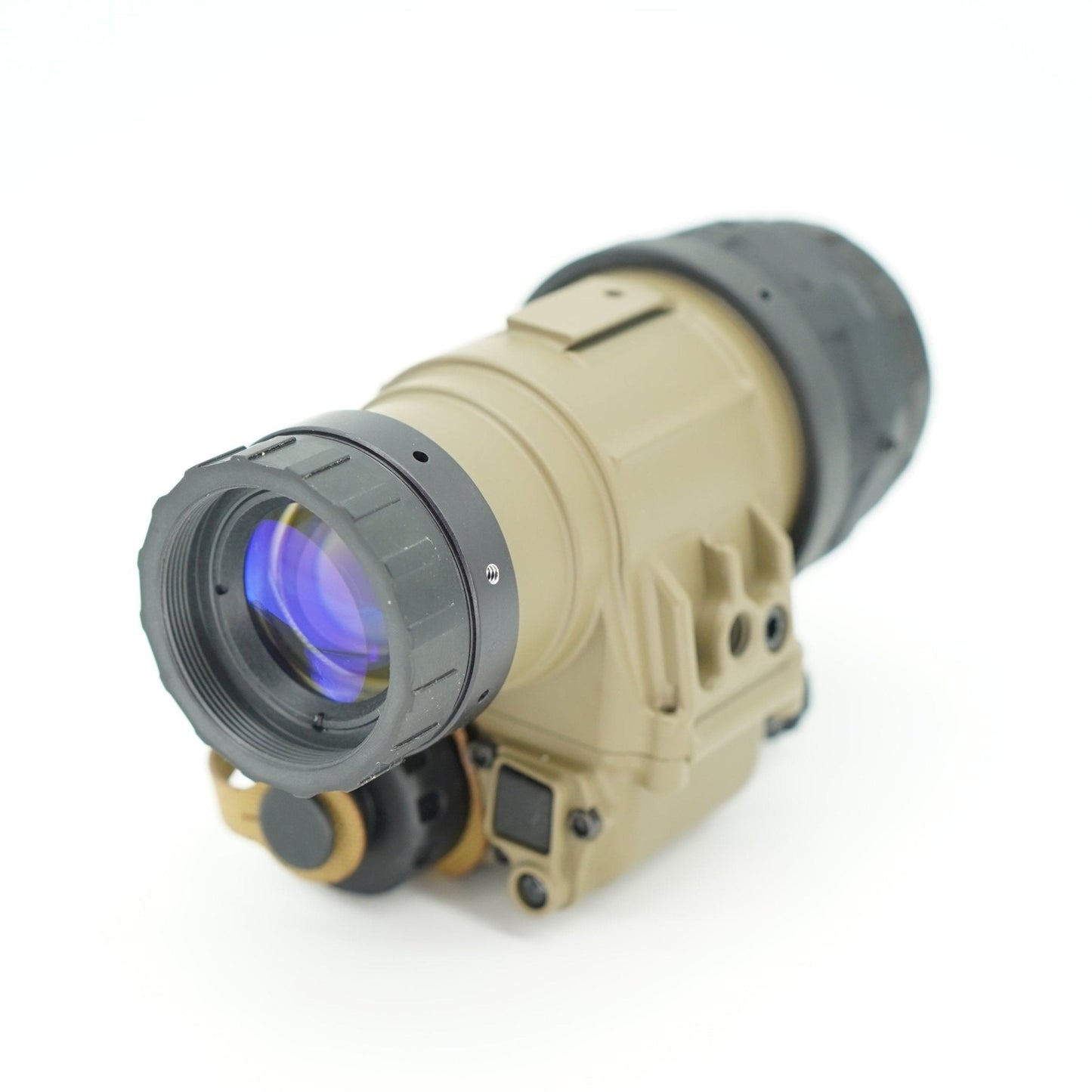

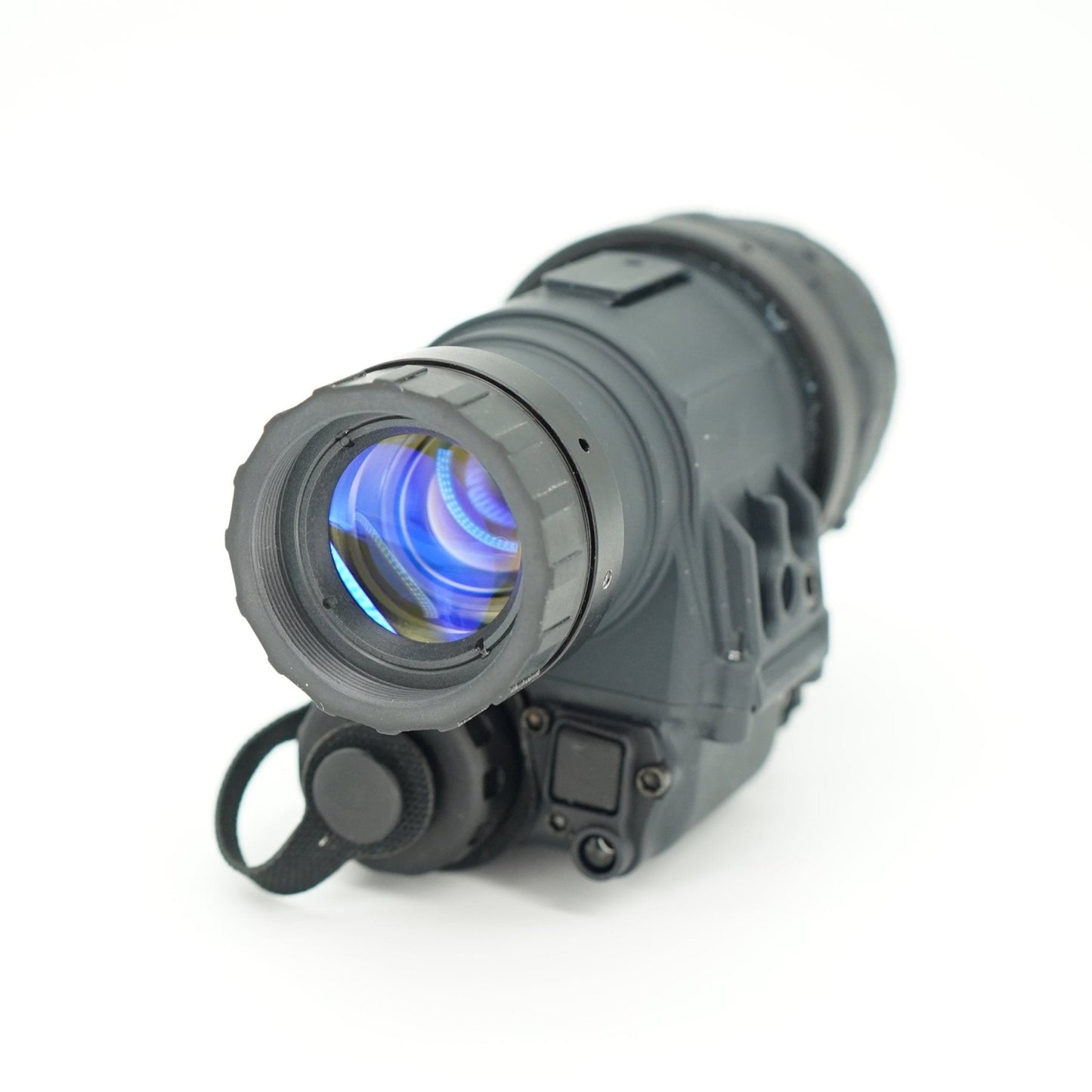

The monocular is available in Flat Black and Flat Dark Earth. The components of the monocular are media blasted to give a non-reflective matte finish, then black anodized for durability. For the FDE option, Cerakote, a proven firearms finish, is applied over the anodizing to give a tough, attractive finish.
Our Night Vision devices are custom built to your specifications. Please allow up to one week for assembly, calibration, and testing prior to shipment.
Key Features:
- Power Source: (1) CR123 Size Battery
- Focus Range: 9.8” to Infinity (and beyond)
- Operation Time: Approximately 75 Hours at Room Temperature
- Field Of View: 40 Degrees
- Weight: 300g with std Mil-spec optics and battery
- Dimensions: 2.0” X 2.6” X 4.2”
- IR Illuminator: Built In
- Water Resistance: Submersible To 66 FT
- IR LED & LOW BATTERY INDICATORS: YES
- INTENSIFIER TUBES: COMPATIBLE WITH MX-11769 STYLE
- OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE
- WARRANTY: 5 YEARS ON HOUSING PARTS AND SERVICE PER POLICY
RPO Commercial lenses
These are a custom run of lenses produced for Electro Optics North Inc, whom we are a distributor for. These lenses offer fantastic value without a noticeable change in performance for most commercial users.
Comparison Between RPO Milspec and RPO Commercial Lens Systems:
All of our fully built night vision devices come standard with a 3-year warranty. For more information, click here.
This product is regulated under DEC (Defence Export Controls), but is able to be exported. View FAQ for more information.
Origin:
- Housing Manufactured in USA
- Built in Australia
- NNVT - China
- RPO CommSpec - USA
SKU:NVG-M-HS-RVM-B-NNVT2000-RPOCS
