iRay Jerry Clip On Thermal Imager (COTI)
iRay Jerry Clip On Thermal Imager (COTI)
Couldn't load pickup availability
Backorder
Backorder
Currently available on backorder. 2-3 weeks.

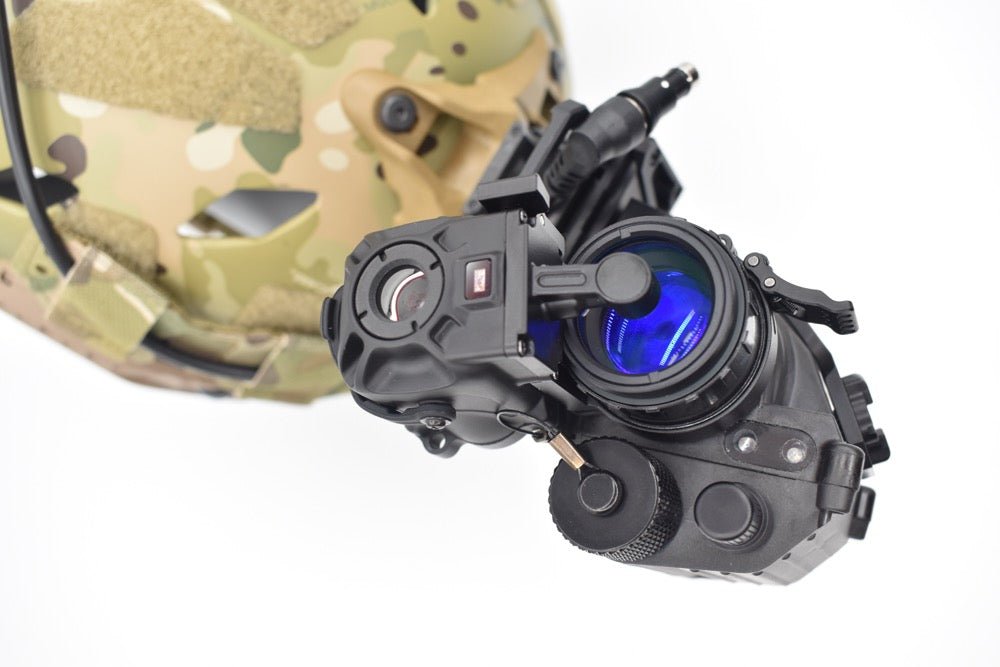

The Jerry COTI is an excellent addition to any users Night Vision, as it allows them to greatly increase their realm of detection. By simply clipping on to the objective lens of your NV device, the COTI projects a thermal image which overlays the NV.
JerryC Thermals currently uses software for image alignment for the different modes, which can be seen below.
Models:
| C2 | CE2 | C5 | CE5 | |
| Resolution | 384x288 | 384x288 | 640x512 | 640x512 |
| Field of View | 20° | 20° | 30.5° | 30.5° |
| Power Supply | Dual | External | Dual | External |
Specifications:
|
Detector Type |
Uncooled VOx infrared detector |
|
|
Detector Resolution |
384×288 or 640x512 |
|
|
Pixel Size |
12μm |
|
|
FOV |
20 or 30.5 |
|
|
Display Mode |
Manual/Automatic |
|
|
Image Mode |
White-hot/Highlight/Outline |
|
|
Power Supply |
17335,18650 |
|
|
Weight |
78g/110g |
|
|
Interface |
External power supply/Analog video (PAL)/RS232 |
|
|
Operating Temperature |
-40°C~+60°C |
|
|
Ingress Protection Rating |
IP67 |
|
1 year warranty on internal components, 2 year warranty on external.
This product is regulated under DEC (Defense Export Controls), but is able to be exported. View FAQ for more information.
